7 Tips for Sourcing the Right Molded Gaskets

Choosing the right Molded Gaskets can determine whether a sealed assembly survives heat, pressure, vibration, and years of handling. A gasket may look simple, yet its material, geometry, and manufacturing quality affect every contact surface. An experienced sourcing process begins with the application, not a supplier’s catalogue.

The seven tips in this guide focus on practical decisions that reduce avoidable failures. You will examine temperature ranges, fluid exposure, compression set, dimensional tolerances, and required certifications. Request clear drawings and representative samples. Then compare test results with actual operating conditions, such as a gasket compressed inside a 2-millimeter groove or exposed to oil at 120°C. Small details matter.

Supplier capability deserves equal attention. Review tooling control, inspection methods, batch traceability, and corrective-action records. A low unit price can become expensive after leakage, production delays, or repeated mold adjustments. That lesson is easy to overlook.

No sourcing method is perfect. Even experienced teams sometimes trust familiar materials without checking a changed formulation or new production site. That assumption can fail. Ask direct questions, document technical agreements, and validate performance before approving volume production. Reliable suppliers should welcome this discipline, not avoid it. Their answers should be specific, measurable, and supported by evidence. With careful evaluation, your Molded Gaskets can provide consistent sealing performance instead of becoming a hidden maintenance risk.

Table of Contents [Hide]

1 Define the Application and Performance Requirements

2 Select the Most Suitable Gasket Material

3 Match the Gasket Design to the Sealing Conditions

4 Evaluate Supplier Quality and Manufacturing Capabilities

5 Confirm Samples, Testing, Pricing, and Long-Term Support

Define the Application and Performance Requirements

Define the Application and Performance Requirements

A molded gasket should be selected from operating facts, not a generic material chart. Record the mating surfaces, flange design, pressure, temperature, media, motion, and maintenance access. A seal exposed to steam needs different resistance than one contacting fuel or cleaning chemicals. Small details matter. A rough flange can cut the gasket during compression.

The U.S. Department of Energy reports that compressed-air systems may lose 20–30% of their output through leaks. That figure shows why sealing performance affects energy use, not only maintenance. Specify the target leakage rate, compression range, and expected service life before requesting samples. For rotating or vibrating equipment, include shaft movement and installation tolerances. In my experience, buyers often provide temperature data but overlook pressure pulses. That omission can distort material selection.

Use recognized test methods when comparing suppliers. ASTM standards can help define tensile strength, compression set, hardness, fluid resistance, and aging performance. Ask for test conditions, not just a pass statement. A gasket showing 25% compression set after one test may perform differently after repeated thermal cycles. Laboratory data is useful, but it is not the whole application. A production trial should examine installation force, surface damage, leakage, and removal after service. Some requirements will remain uncertain. Document those gaps and test them deliberately.

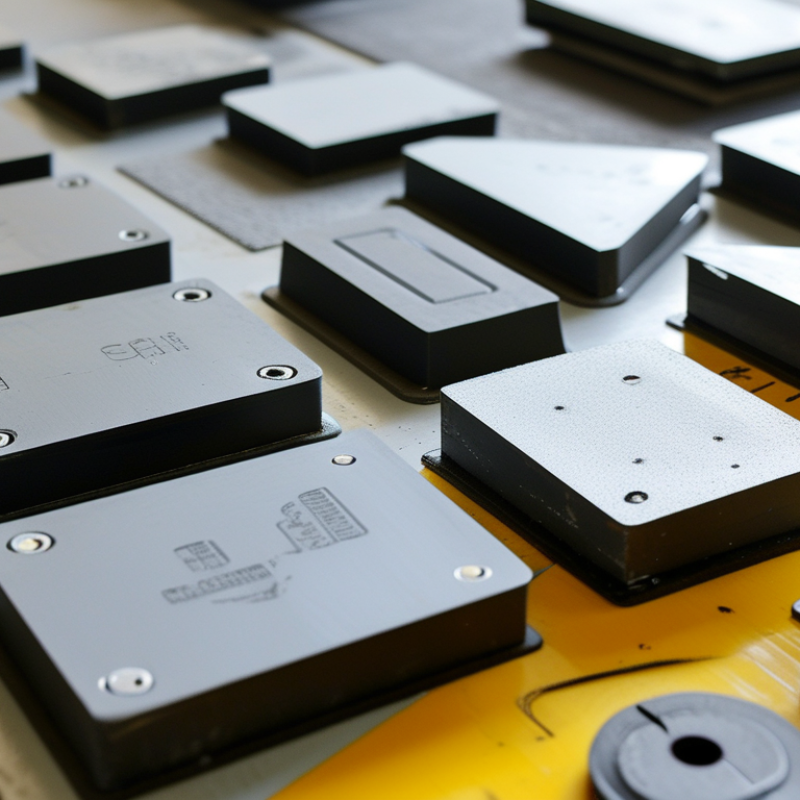

7 Tips for Sourcing the Right Molded Gaskets - Define the Application and Performance Requirements
Tip	Application Requirement	Recommended Data to Define	Typical Screening Criteria	Supplier Information to Request
1	Identify the sealing environment	Define the fluid or gas, concentration, cleanliness requirements, exposure duration, and whether the gasket contacts potable water, food, medical fluids, fuel, oil, refrigerant, steam, or cleaning chemicals.	The compound should have documented compatibility with the actual medium and concentration. Compatibility should be checked for swelling, softening, hardening, cracking, mass change, and leakage.	Ask for a chemical-resistance chart, immersion-test conditions, and any applicable regulatory or hygiene declarations.
2	Set the operating temperature range	Specify minimum and maximum continuous temperature, short-term temperature peaks, thermal cycling, start-up and shutdown conditions, and heat-transfer conditions.	Select a material whose published service range covers the full application range with a safety margin. Typical elastomer screening ranges include approximately −40 to 120 °C for general-purpose compounds and higher ranges for heat-resistant compounds.	Request continuous and intermittent temperature limits, low-temperature flexibility data, and compression-set results at the relevant temperature.
3	Define pressure and sealing load	Record internal pressure, external pressure, pressure direction, pressure pulsation, vacuum exposure, pressure spikes, and the available bolt or clamp load.	Confirm that the gasket profile, hardness, cross-section, and compression are suitable for the pressure. Higher pressure, vacuum, or pulsation may require an anti-extrusion feature, improved groove support, or a harder compound.	Request pressure-test results using representative hardware, including leakage criteria, test duration, temperature, and pressure-cycle details.
4	Choose material and hardness deliberately	Define the required elastomer family, nominal hardness, color restrictions, reinforcement needs, electrical properties, and resistance to ozone, sunlight, abrasion, or hydrolysis.	Common molded-gasket hardness selections are approximately 50 to 90 Shore A. Softer materials generally conform better to surface irregularities, while harder materials can provide improved extrusion resistance when the joint design supports them.	Ask for the material designation, hardness tolerance, tensile strength, elongation, tear strength, compression set, and batch-to-batch consistency data.
5	Control geometry and compression	Provide the drawing, three-dimensional model, sealing line, cross-section, groove dimensions, corner radii, parting-line limitations, and required installed compression.	Compression must be sufficient to close surface irregularities without overstressing the material. As a preliminary design check, many static elastomer seals use roughly 10% to 30% compression, subject to the profile, material, pressure, and manufacturer design guidance.	Request mold-flow or tooling feedback, dimensional capability, flash limits, parting-line location, and inspection points for critical sealing features.
6	Specify surface finish and dimensional tolerance	Define mating-surface roughness, flatness, concentricity, alignment, gap, allowable flash, burr limits, and the dimensional tolerance of the molded gasket.	A smooth, defect-free sealing surface is essential. Excessive roughness, scratches, gaps, misalignment, or mold flash can create leak paths even when the material is chemically compatible.	Request the dimensional inspection plan, gauge method, surface-finish requirements, visual-acceptance standard, and sample measurement report.
7	Validate durability, quality, and supply capability	Define expected service life, assembly method, installation lubrication, storage conditions, inspection frequency, annual volume, batch size, traceability, and change-control requirements.	Qualification should include leak testing and, where appropriate, compression-set, aging, thermal-cycle, pressure-cycle, vibration, and media-exposure testing using production-intent parts.	Request a quality plan, certificates of conformity, lot traceability, packaging and shelf-life information, process controls, corrective-action procedure, and production capacity.

Select the Most Suitable Gasket Material

The right molded gasket starts with the fluid, temperature, and pressure—not the lowest quotation.

Nitrile rubber suits many petroleum oils and hydraulic fluids, but its useful temperature range is commonly about -40°C to 100°C. EPDM handles hot water and steam better, while fluorocarbon rubber supports higher heat and chemical exposure. Silicone remains useful in low-temperature sealing, though its tear resistance can disappoint during assembly.

Check the actual operating cycle. A gasket facing 90°C fluid for ten minutes behaves differently from one exposed continuously. Also record compression, flange movement, cleaning chemicals, and storage conditions.

The U.S. Department of Energy reports that compressed-air leaks can waste 20–30% of compressor output in poorly maintained systems.

A small material mismatch can therefore become a measurable energy loss. That figure is often overlooked.

Ask suppliers for compound identification, hardness, dimensional tolerance, and test results.

ASTM F37 methods can help compare leakage performance under controlled conditions. I would also request samples molded with the production tool, not a simple sheet cutout. Tool marks matter. So does aging.

In one practical review, a gasket looked perfect after installation but hardened after repeated heat cycles. We nearly approved it. That was a mistake. Material data should be checked against real service conditions, and the final choice should consider long-term compression set, not only initial sealing.

Match the Gasket Design to the Sealing Conditions

A molded gasket succeeds when its design matches the sealing conditions. Start by defining the pressure, temperature, fluid, and exposure time. A gasket facing hot oil needs different resistance than one sealing chilled water. Check pressure changes too. Pulsing loads can damage a material that performs well under steady pressure.

Inspect the joint before choosing the profile. Flange gaps, bolt spacing, surface roughness, and available compression all affect sealing reliability. A narrow groove may need a precise gasket shape. A flexible lip can suit movement, while a solid profile may perform better on a rigid joint. In field inspections, uneven compression often explains leakage better than the material itself. It is easy to overlook.

Review installation and service conditions together. Confirm the gasket will not twist, stretch, or extrude during assembly. Consider vibration, thermal cycling, cleaning agents, and outdoor aging. Measure the actual groove when possible, rather than trusting an old drawing. That shortcut sometimes fails. Ask for material compatibility data and compression-set results from controlled testing. Then compare them with real operating conditions, including temperature peaks and pressure spikes. A small design change, such as adding a support feature or adjusting the cross-section, can prevent repeated maintenance. Document the reasoning, not only the final size.

Evaluate Supplier Quality and Manufacturing Capabilities

Choosing molded gaskets starts with more than a supplier’s catalog. A reliable evaluation begins with production evidence. Ask for material certifications, lot traceability, inspection records, and recent dimensional reports. These documents show whether quality controls operate daily or only during audits. Look closely at the supplier’s experience with compression set, temperature cycling, chemical exposure, and sealing pressure. Real applications rarely match a neat laboratory sample. That matters.

Visit the manufacturing process, physically or through a detailed remote review. Check how compounds are mixed, molds are maintained, and curing conditions are recorded. A capable supplier should explain mold design, flash control, parting-line limits, and automated inspection methods. Request samples from different production lots, not only hand-selected pieces. Measure thickness, inner diameter, hardness, and surface defects with agreed methods. I have found small variations around bolt holes can reveal inconsistent tooling or uneven compression. They are easy to miss.

Supplier quality also depends on how problems are handled. Ask for a corrective-action example, including root cause, containment, verification, and closure evidence. Clear answers build confidence; vague promises do not. Review capacity, backup equipment, maintenance schedules, and lead-time assumptions before approving a design. A supplier may produce excellent prototypes yet struggle with repeatability at higher volumes. That gap deserves attention. Leave room for technical questions, because specifications are sometimes incomplete or unrealistic. Recheck critical dimensions after aging tests, not just before shipment.

Confirm Samples, Testing, Pricing, and Long-Term Support

A reliable molded gasket supplier should confirm samples before discussing a large production order. Request samples made with the proposed material, mold, and curing process. Check dimensions with calibrated tools, especially sealing lips, holes, and thickness. Test the gasket against your actual temperature, pressure, fluids, and surface finish. A sample that looks perfect on a bench may fail after repeated compression.

Testing should include leakage, compression set, aging, and visual inspection. Ask for clear test methods, acceptance limits, and recorded results. Do not accept vague claims such as “high performance.” Useful evidence includes inspection reports, material certificates, batch numbers, and traceable revisions. Still, testing can miss installation mistakes. Review fitment with the people who assemble the product.

Pricing needs more than a unit figure. Confirm tooling charges, minimum quantities, packaging, freight, inspection costs, and revision fees. I once treated a low quotation as a clear saving; later, hidden tooling changes weakened the comparison. That was a useful warning. Ask for a total-cost breakdown and realistic lead times. Long-term support matters just as much. Confirm how the supplier handles defects, urgent replacements, engineering questions, and material changes. A dependable partner communicates before a problem reaches the production line. Ask for written response times. Keep that conversation practical.
